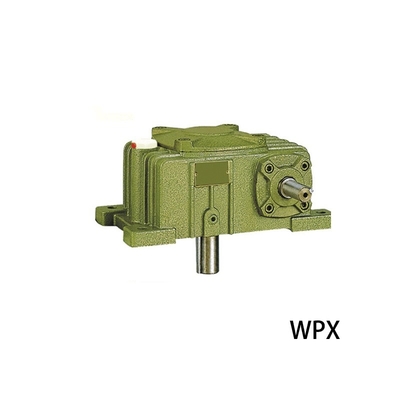

NSK Hotels supporting WPA WPS60, 70, 80, 100, 120, 135, 155, 175 output shaft double worm gear retarder

1 Piece
MOQ
NSK Hotels supporting WPA WPS60, 70, 80, 100, 120, 135, 155, 175 output shaft double worm gear retarder
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Gearing Arrangement: Worm
Output Torque: 1.8-2371N.M
Input Speed: 750-1500rpm
Output Speed: 14-280rpm
Product name: WPA series worm speed reductor
Ratio: 10~60
Input speed: 750-1500rpm
Output speed: 14-280rpm
Certificate: ISO 9001
Output torque: 1.8-2371N.M
Input power: 0.4~34kw
Warranty: 1~2 Years
Bearing: NSK Bearing
Mounting Position: Foot Mounted. Flange Mounted
Informazioni di base
Certificazione: ISO 9001
Termini di pagamento e spedizione
Descrizione di prodotto
Product Description

WP SERIES WORM GEAR SPEED REDUCER

WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.

WP SERIES WORM GEAR SPEED REDUCER FEATURES:

●Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.


●Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.


●The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.

●Higher requirements for lubrication and cooling.

●Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.


Details Images

WP SERIES WORM GEAR SPEED REDUCER

wp series structure drawing

HIGH QUALITY OUTPUT SHAFT

New standard axle, multi-precision machining, through rigorous dynamic and static balance test, to ensure low noise and smooth operation of reducer.

HIGH QUALITY SHELL MATERIAL

The box body is made of HT200 material,which is cleaned by professional screening and washing equipment to ensure that the inner cavity of the box body is cleaner without iron filings.

PRECISION BEVEL GEAR

20CrMn Ti material - low carbon alloy steel
Imported gear grinding machine processing, high hardness, stable performance.
Vacuum furnace carburizing heat treatment, carburizing layer uniform.

WP SERIES WORM GEAR SPEED REDUCER MOUNTING DIMENSIONS OUTPUT SHAFT DIMENSIONS AND OVERVIEW DIMENSIONS

WPA SERIES MOUNTING POSITION

Speed  Ratio
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60

Efficiency

77~90%

76~88%

75~84%

72~82%

68~82%

64~75%

62~72%

60~71%
Our Company
Application area

WP series worm gear speed reducer

 It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.

Packing&Transportion

PACKING AND TRANSPORTION

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets and wooden pallets according to customer needs.

●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.

●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.

●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

FAQ

Q1: Are you a trading company or a manufacturer ?
A: We are a manufacturer in Jiangsu Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.

Q2: How we select models and specifications?
A: According to the specific details of the demands from the part of enquiry, we will recommend the products' models upon synthesizing the factors of field of products usage, power, torque arm and ratio...

Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order, we surely will allow discount.

Q4: How long should I wait for the feedback after I send the enquiry?
A4: We will reply as soon as possible, 12 hours at most.

Q5: What is your product warranty period?
A: We have the certifications of ISO9001,CE, SGS.

Q6: What industries are your gearboxes being used?
A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment and so on.
