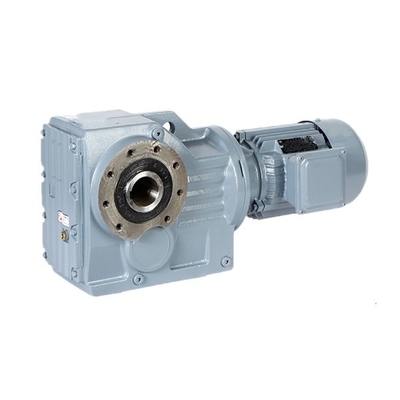

Truss 1450rpm K Series Gear Reducer KA47 Helical Helical Bevel Gear Reducer With 5.5kw Motor

1 Piece
MOQ
Truss 1450rpm K Series Gear Reducer KA47 Helical Helical Bevel Gear Reducer With 5.5kw Motor
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Farms, Energy & Mining
Gearing Arrangement: Helical
Output Torque: 10-62800N.m
Input Speed: 750-3000rpm/min
Output Speed: 0.13-295rpm/min
Product name: K/KA/KF/KAF series helical bevel gear reducer
Material: 20CrMnTi
Bearing: NSK Bearing
Output speed: 0.13-295r/min
Output torque: 0-50000N.m
Motor power: 0.18-200kw
Mounting Types: Foot/ Hollow shaft mounted
Housing Material: HT200 (High Strength Cast Iron)
Warranty: 1-2 Years
Certificazione: ISO9001
Informazioni di base
Certificazione: ISO9001
Termini di pagamento e spedizione
Descrizione di prodotto
Product Description

K KF KA KAF SERIES HELICAL-BEVEL GEAR REDUCER

K series reducer adopts two pairs of helical gears and a pair of spiral bevel gears to drive, so that the input and output are at right angles. Spiral bevel gear drive, with large coincidence coefficient, strong bearing capacity, stable and reliable transmission. All gears are carburized and quenched with alloy steel, which has high hardness and good wear resistance. Various structures can be combined with R series and H/B series for low output speed and high torque.

OUTPUT SPEED:
0.13~295 r/min
OUTPUT TORQUE:
≤50000 N.m
POWER:
0.18~200kw
MOUNTING TYPE:
Foot-mounted and Hollow-mounted

Hollow-shaft

B5 Flange-mounted

B5 Flange-mounted and hollow-mounted

B14Flange-mounted and hollow-mounted

K KF KA KAF SERIES STRUCTURE DRAWING

K series helical-bevel gear units overview

◆Right-angled output ,structure compact,rigid tooth flank carryimg greater torque,high precision gear ensuring unit to operate stably,noice low lifetime long.

◆Mounting mode: Foot-mounted,flange-mounted,torque arm-mounted, small flange-mounted.

◆Input mode : direct-motor-connected,strap-connected,flange-connected.

◆Output mode: Hollow shaft output or soild shaft output,average efficiency 94%.

◆Ratio: ratio of basic type is 8.1-191,ratio of combination is up to 13459.

K SERIES MOUNTING DIMENSIONS OUTPUT SHAFT DIMENSIONS AND OVERVIEW DIMENSIONS


HIGH QUALITY OUTPUT SHAFT

New standard axle, multi-precision machining, through rigorous dynamic and static balance test, to ensure low noise and smooth operation of reducer.

PRECISION BEVEL GEAR

20CrMn Ti material - low carbon alloy steel
Imported gear grinding machine processing, high hardness, stable performance.
Vacuum furnace carburizing heat treatment, carburizing layer uniform.

HIGH QUALITY SHELL MATERIAL

The box body is made of HT200 material,which is cleaned by professional screening and washing equipment to ensure that the inner cavity of the box body is cleaner without iron filings.

PROFESSIONAL AIR TIGHTNRSS TEST

Before spraying each reducer, air tightness test is needed to minimize the occurrence of oil leakage and air leakage. Ensure the long life and good operation of the reducer.

Our Company

JIANGSU DEVO GEAR TECHNOLOGY CO., LTD

Our company is located in the city of Xuzhou, Jiangsu Province of China.

We handle the products of power transmission, our lines mainly cover series products in speed reducers, gearboxes , associated electricial motors and other power transmission accessories. Based on the versatile functions, our products can be utilized in many fields: machines of waste water treatment, dredgers, chemical industry, cranes, metal working mills, conveyors, paper industry, cement industry, cableways and so on.With the excellent quality and reasonable price , our products enjoy a good reputation from customers and the peers all over the world.

Furthermore, the R&D investment are annually increasing for the purpose of better meeting the new demands of our customers and adapting the new tendency of the industry.
Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you.

Application area

R S K F series products are widely used in metallurgy, mining, building materials, building, petrochemical industry, aerospace, food industry, medical industry, overweight transportation, textile industry, general machinery and other fields.

Packing&Transportion

PACKING AND TRANSPORTION

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets and wooden pallets according to customer needs.

●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.

●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.

●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service.

FAQ

Q1: Are you a trading company or a manufacturer ?
A: We are a manufacturer in Jiangsu Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.

Q2: How we select models and specifications?
A: According to the specific details of the demands from the part of enquiry, we will recommend the products' models upon synthesizing the factors of field of products usage, power, torque arm and ratio...

Q3: How is your price? Can you offer any discount?
A: Our prices are always competitive. If the customer can place a large order, we surely will allow discount.

Q4: How long should I wait for the feedback after I send the enquiry?
A4: We will reply as soon as possible, 12 hours at most.

Q5: What is your product warranty period?
A: We have the certifications of ISO9001,CE, SGS.

Q6: What industries are your gearboxes being used?
A: Our gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment and so on.
