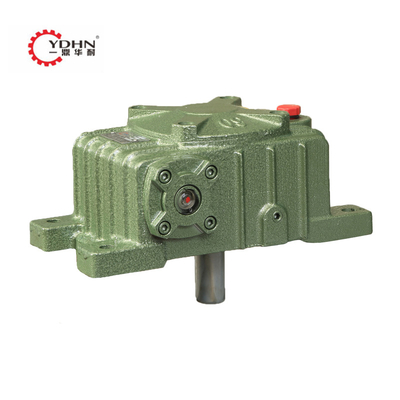

High Speed ​​Machine Tool Cast Iron Drill Speed ​​Reducer WPA wp Series Worm Gearbox Reducer

1 Set
MOQ
$45.00(>=1 Sets)
prezzo
High Speed ​​Machine Tool Cast Iron Drill Speed ​​Reducer WPA wp Series Worm Gearbox Reducer
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Warranty: 1 years, 12 Months
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops
Weight (KG): 5 KG
Customized support: OEM, ODM
Gearing Arrangement: Worm
Output Torque: max2371n.m
Input Speed: 1440 rpm
Output Speed: 24-144 rmp
Product name: Gearbox
Application: Machine Tool
Color: Customers' Requirements
Ratio: 10-60
Material: Cast Iron
Mounting Position: Horizontal (foot Mounted)
Certificate: ISO9001
Packing: Wooden Box
Heat treatment: Quenching
Informazioni di base
Certificazione: ISO9001
Termini di pagamento e spedizione
Packaging Details: inner pack: use plastic bag and foam box,reduction box. outer pack: carton or wooden case per set or based on customer's request.
Descrizione di prodotto
Product Description
1.Housing:iron cast
2. low noise(<50DB)
3.Model:WPS 40-250,Ratio:10 to 60
4.Efficient and safe operating
5.ISO9001,Factory price,OEM
6.Technology Data:
Type:
gearbox WPS
Model:
WPS 40-250
Ratio:
1:10,15,20,30,40,50,60
Color:
Blue/Green Or On Customer Request
Material:
Housing: Die-Cast Iron cast
Worm Gear-Copper-9-4#
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
Shaft-chromium steel-45#
Packing:
Carton and Wooden Case
Bearing:
C&U Bearing
Seal:
KSK
Warranty:
12Months
Input Power:
0.12kw~15kw
Usages:
Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing,
Woodworking,Glass.
IEC Flange:
B5
Lubricant:
Synthetic&Mineral

Components:
1. Housing: Cast Iron
2. Gears: Worm Gears, 1 stage
3. Input Configurations:
Solid Input Shaft Motor Flange - IEC B54. Output Configurations:
Solid Output Shaft
Hollow Output Shaft

Features:
1. Different variants, both input and output shafts can be mounted horizontally or vertically
2. Compact structure
3. Direct drive or indirect drive available
4. Output could be solid shaft or hollow hole
Product Category
Product Difference
About Us
Exhibition
Certificate
Packing&Shipping
FAQ
1.Q:What information should i tell you to confirm the worm gearbox?
A:Model/Size,B:Ratio and output torque, C:Powe and flange type,D:Shaft Direction,E:Housing color,F:Order quantity.

2.What type of payment methods do you accept?
A:T/T,B:B/L,C:CASH;

3.What's your warranty?
One year.

4.How to delivery?
A:By sea- Buyer appoints forwarder,or our sales team finds suitable forwarder for buyers.By air- Buyer offers collect express account,or our sales team fingds suitable express for buyers.(Mostly for sample) Other- We arrange to delivery goods to some place in China appointed by buyers.

5.Can you make OEM/ODM order?
Yes,we have rich experience on OEM/ODM order and like sign Non-disclosure Agreement before sample making;
